Measure
Measure floor plans and drawings in a PDF, with snapping
Turn a PDF drawing into measurements. Calibrate from a known length or a ratio, then measure; points snap to the corners, ends, intersections and midpoints of the drawing so results are exact.
- Calibrate from a known length, a 1:n ratio or a custom paper = real scale
- Distance, path length, area, rectangle, radius and angle
- Snap to corners, end points, intersections, midpoints and the nearest point on a line or curve
- Count tool with categories and per-page totals
- Scales can apply to the whole document, one page or a region
- Export to CSV (safe against spreadsheet formula injection)
- Standard PDF measurement data is written, so other tools understand it
- A clear warning appears when a drawing is not calibrated
Measuring a floor plan with a snap marker at a line intersection

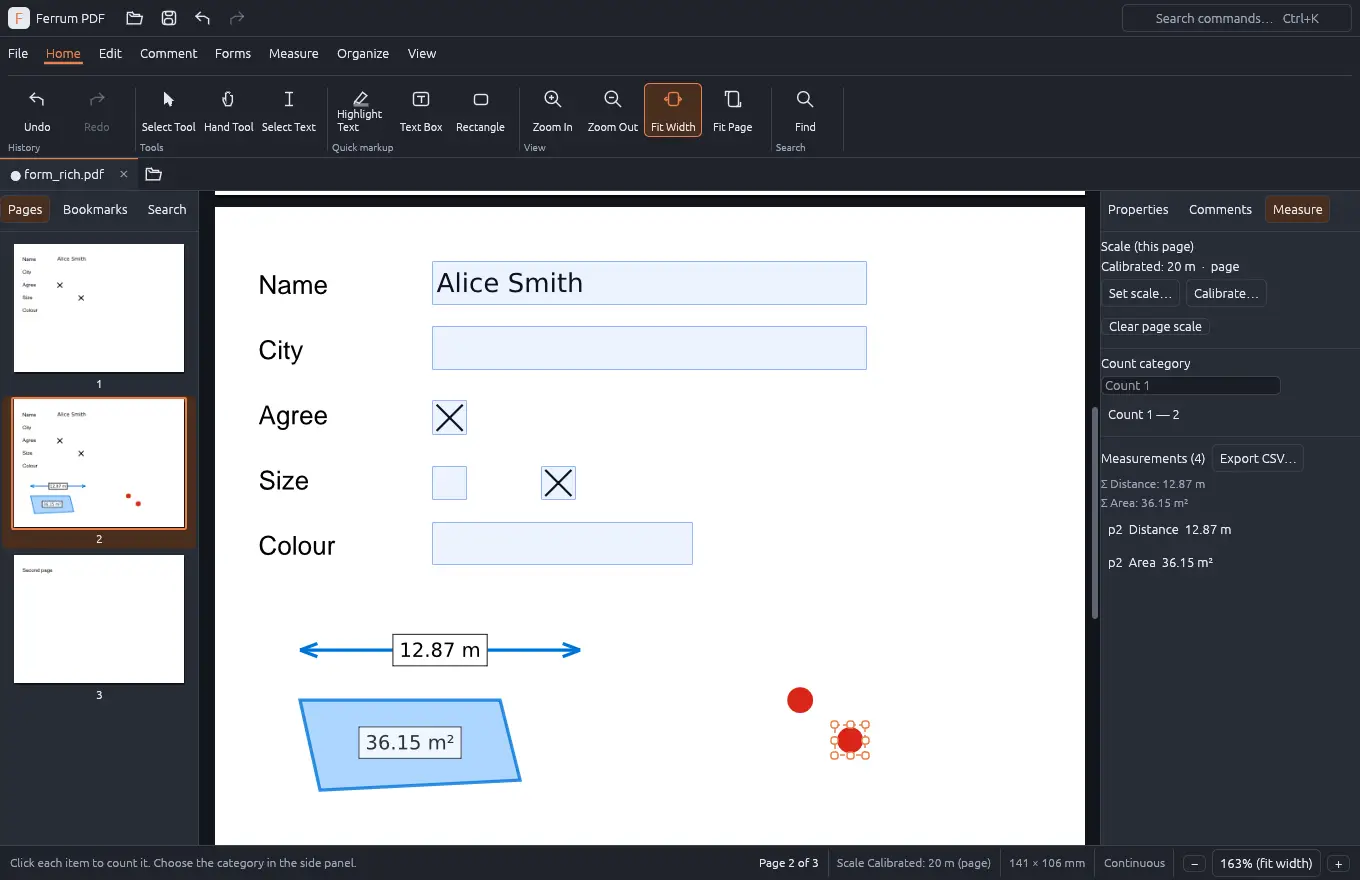

Measured distance, area and counted items with the measure panel
